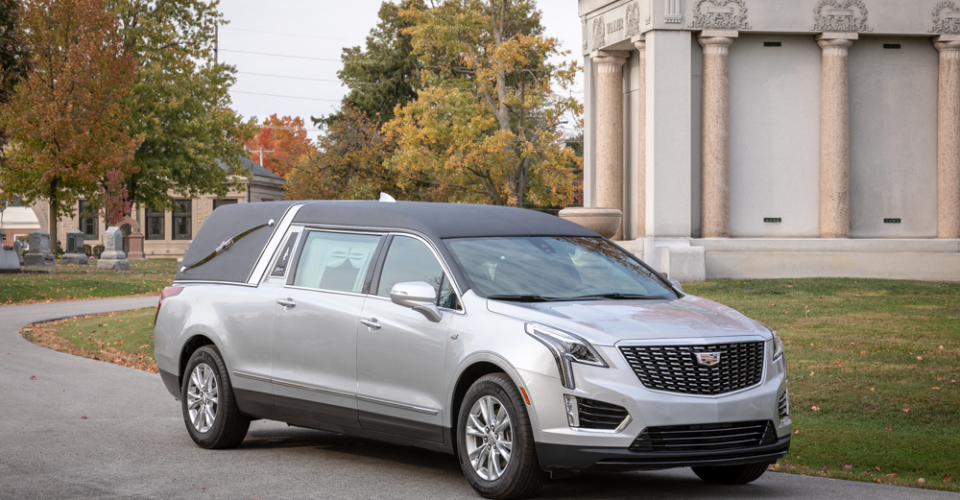

Superior Coach Cadillac XT5 Statesman



Cadillac XT5 Statesman

Here’s real value at its finest – fashioned and styled to express prestige and pride of ownership. The all-new Statesman by Superior is designed and engineered to offer perfect professional  performance, an enhanced community image and all for a modest investment.
Cadillac XT5 Statesman

Standard 2023 XT5 Statesman Features
General Structural Specifications

  • Assembled on the Main Frame Fixture: Linear Rails & Framing Racks for precision alignment
  • C Pillars: 12-gauge steel provide support for the rear side doors
  • Chassis Extension: 10” Extension after the rear wheels
  • Chassis Extension: 40” Wheelbase Extension
  • Coach Body: High performance vinyl-ester resin
  • Floor Pan: 16-gauge steel floors vs 18 in the OEM
  • Floor Supports: 1″x2″ steel tubing with 16-gauge walls for maximum support
  • Hinges: 7-gauge steel for all hinge plates, 3/8” steel gusset reinforcements, and 10-gauge steel striker
  • Interior Wheel Wells: Modified and reinforced for maximum casket width
  • Partition: 16-gauge steel tubing and 45◦ structural supports
  • Rockers: 12-gauge inner and outer rockers with internal reinforcements vs 14-gauge in OEM
  • Super-Structure: 16-gauge 1 ¼” steel tubing for unsurpassed strength
  • Windshield and Pillars: OEM

Standard Functional Features

  • 3rd break light mounted in rear load door
  • Axalta Chroma Premier Paint System: Sealer, Base Coat and Clear Coat: 7 – 9 coats
  • Back-Up Sensors
  • Bumper Protector
  • Casket Door Hinge – Traditional left hand casket door hinge – opens 135°
  • OEM Windshield and Pillars
  • Drip Rails – Polished Aluminum
  • Emergency Load Door Release – accessible outside the coach
  • Spare Tire – Space Saver
  • Gas Tank: 19-Gal, right side fill
  • Extension – Double cut- 46″ wheelbase extension plus 10″ rear
  • Side door – 47″ wide with a 78° opening
  • Tempered Glass Partition tilted to reduce glare
  • 4-Year / 50,000 Mile Conversion Warranty
  • Wheels, 18″ (45.7 cm) 6-Split Spoke alloy with Pearl Nickel finish
  • Front-wheel drive
  • Engine, 2.0L Turbo, 4-cylinder, SIDI with Automatic Stop/Start (235 hp [175 kW] @ 5000 rpm, 258 lb-ft of torque [350 N-m] @ 1500-4000 rpm)
  • Transmission, 9-speed automatic

Standard Interior Features

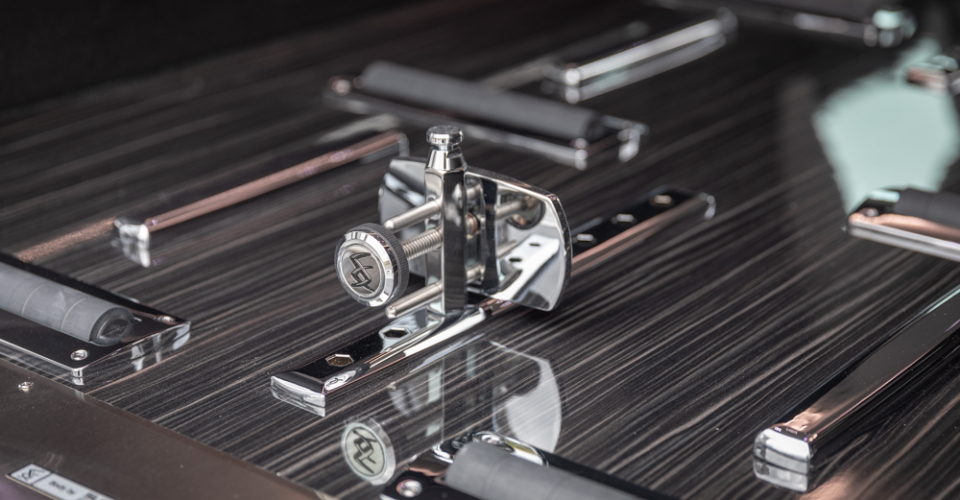

  • Bier Pin Plates – Front, 1
  • Bier Pins – Adjustable, quick release
  • Church Truck Well – Opened
  • Deluxe Cloth Headliner
  • Die-Cast, Chrome Plated Hardware: 12 rollers total – 2 90°
  • Die-Cast, Chrome Plated Hardware: 4 skid bars
  • Die-Cast, Chrome Plated Hardware: 5 bier pin plates
  • Drapes – 1 – piece with swags
  • Floor Extension – Pull out sill and 2 90° rollers
  • Interior Sidewalls – Shadow Box & Wheel Cover Trim
  • Lighted underfloor storage for spare tire and church truck
  • Nameplate Brackets on Side Doors
  • Partition – with Decorative Trim
  • Phenolic Floor Covering
  • Pull Handle on Load Door
  • Umbrella storage
  • Urn Holder – Electric

Standard Exterior Features

  • Badging – Superior
  • Belt Moldings – Chrome
  • Pillars – B+C, Black
  • Rocker Moldings – Painted Body Color
  • Roof – Full Vinyl with 1/4 inch padding
  • Superior Landau Bows – Chrome plated
  • Motif Panel – Padded vinyl, with the Superior Fleur des Lis, and a Stainless Steel Frame
  • Stainless Steel vinyl top reveal molding
  • Strobes – 4-way – Clear
  • Side door glass with B & C Pillar Appliques
Statesman Options
  • Bumper Protector – Carpet – Full Floor
  • Casket Door Hinge – Right Hand Side
  • Casket Guides – Protects interior wheel well from casket damage
  • Church Truck Well – Closed W/ Flip Lid
  • Drapes – 3 – piece sliders – Deluxe
  • Flagstaff Holders-12” with 2 sets of flags
  • Flagstaff Holders -18” with 2 sets of flags
  • Floor Extend Table – Hydraulic – Full Floor
  • Floor Extend Table – Manual – Full Floor
  • License Plate Bracket – Install Front
  • Light Bar – Mini LED with Base and Wiring
  • Light Bar – Pre-Wiring only
  • Name Plate Brackets – Load Door
  • Paint – Full Body Repaint – Past Model Year – Standard Colors
  • Paint – Full Body Repaint – Past Model Year – Tri-Coat
  • Paint – GM/Ford Paint Upcharge – Special Colors
  • Pillars – B+C, Stainless Steel Appliques
  • Roof – Paint 1/2 Top
  • Roof Band – Polished Stainless Steel – In the Motif Panel (wide)
  • Strobes – 360° Package
  • Strobes – 4-way – Purple
  • Strobes – Side Mirrors
  • Strobes – Windshield
  • Undercoating
  • Due to continuous improvement, Superior specifications are subject to change without notice or price adjustment.
Dimensions
Overall length239.6″
Overall height70.1″
Overall width77.3″
Overall extension50″
Wheelbase152.5″
Casket floor length (usable space)109.5″
Loading door height39″
Loading door width46.5″
Loading door angle135°
Loading height27.5”
Width between wheelhouses45.5″
Side door opening angles78°
